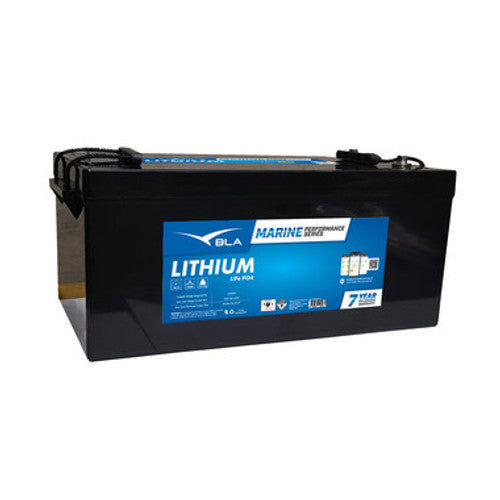

BLA-INVICTA 24V 100AH LITHIUM BATTERY

BLA-INVICTA 24V 100AH LITHIUM BATTERY

$2,939.00
$2,939.00
Sale Sold out
The Invicta Lithium 24V range has been specifically designed
for replacement of similar size Lead acid batteries. The family is
comprised of the popular sizes found in the lead acid range but with
the added benefits of Lithium Iron Phosphate (LiFePO4) technology
and is ideally suited to deep cycle longer run time applications.
Features & Benefits
• Large number of cycles >2000 (100% DoD)
Up to 8 times cycle life of SLA lowering your total cost of
ownership
• Safe and stable chemistry & Integrated BMS
The use of LiFePO4 along with the integrated BMS ensures
protection against over charge / discharge, temperature and
short circuit providing the highest degree of safety
• Greater capacity utilisation – 60% more than SLA
Gives longer runtime than equivalent SLA
• High energy density (less than half of the weight of SLA)
Lowering total weight of application
• Fast recharge
Battery is charged and ready to be used sooner
• Flat Discharge Curve
Longer run time & more efficient use of capacity
• Extremely low self-discharge rate
Can sit unused for longer periods of time
• UL1642 at cell level
Nominal Voltage 25.6v
Nominal Capacity (250C, 0.33C) 100Ah
Terminal M8
Length (mm) 485 ± 2mm
Width (mm) 170 ± 2mm
Height (mm) 245 ± 2mm
Weight 24.2kg
Max Charge Voltage 29.2 ± 0.1V
Standby 27.8 ± 0.1V
Cut off Voltage 20V
Max. Discharge Current 100A
Max. Pulse Discharge Current (3 Sec) 300A
Max. Charge Current 100A
Recommended Current Charge < 30A Cycle Life (100% DoD) > 2000
Operating Temp – Charge 0 – 500C
Operating Temp – Discharge -20 – 550C
Short Circuit Release Load Release
Max. Series / Parallel Configuration 4P
Bluetooth Connectivity Yes
