SpearNTackle

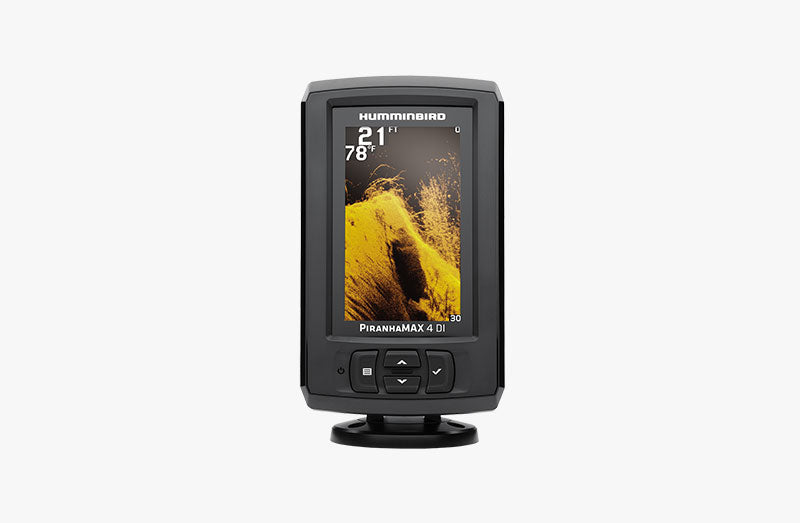

PIRANHAMAX 4 DI
PIRANHAMAX 4 DI
Regular price
$353.00
Regular price
Sale price
$353.00
Unit price
/
per
Couldn't load pickup availability
Nowadays, the PiranhaMAX™ Series is giving you more to chew on with a 4.3″ display and the addition of Down Imaging on select models. So you can see what’s below your boat with great clarity. Thanks to an easy-to-use interface, unlocking the power of Fish ID+™, fish alarms, depth alarms and zoom has never been simpler. Feature for feature, it packs a technological chomp that no fishfinder in its class can match.
![Click for Details](https://spearntackle.com.au/wp-content/uploads/2018/06/downimaging.jpg)
![Click for Details](https://spearntackle.com.au/wp-content/uploads/2018/06/dualbeam.jpg)
DISPLAY
- 4.3″ diagonal
- 480V x 272H
- 256 Colour
SONAR
Down Imaging and Dual Frequency
- 455kHz (2) 16° & 74° @ -10db
- Depth: 95 m (DI)
Dual Beam
- 200kHz / 28° @ -10db
- Depth: 182 m
POWER OUTPUT
- 300 Watts (RMS)
- 2400 Watts (Peak-to-Peak)
WARRANTY
- 2 Years
MODEL | GPS FEATURES | ||
Display Size | 4.3″ Diagonal | GPS Receiver | — |
Display Pixel Matrix | 480V x 272H | GPS Trackplotting | — |
Display Type | Colour TFT | GPS Chartplotting | — |
Display Colors/Grayscale | 256 Colours TFT | Waypoints, Routes, Tracks/Points | — |
Sonar – Standard | Down Imaging/Dual Beam | Humminbird UniMap | — |
Sonar Coverage | 16°, 28°, & 74° @ -10dB | Navionics Gold | — |
Sonar Frequency | 200/455/455 kHz | Navionics Platinum+ | — |
Sonar Optional | — | ETHERNET CAPABLE OPTIONS | |
Target Separation | 63.5mm | 360 Imaging™ | — |
Power Output (max.) | 300 Watts (RMS); 2400 Watts (Peak-to-Peak) |
Radar | — |
Current Draw | 220 mA | NMEA 2000 | — |
Depth Capability | 97m (DI) 182m | Minn Kota® iPilot® Link | — |
Temperature | Yes | 5-Port Expansion Module | — |
Speed | — | OPTIONAL ADD-ONS | |
Backlight | Yes | GPS Receiver | — |
Waterproof | Yes | AIS Compatability | — |
Unit Size – Gimbal Mount | 98mm W x 165mm H x 89mm D | ||
Unit Size – In-Dash Mount | 98mm W x 143mm H x 35mm D | ||
Mount | Tilt and Swivel | ||
Transducer – Standard | 103306 | ||
Transducer Mounting – Standard | Transom | ||
Power Input | 10-20 VDC |
